Single Wall Corrugated Pipe Plant Overview
A Single Wall Corrugated Pipe Plant is an integrated line that produces single wall corrugated plastic pipe in a continuous process. Its sections work together under a common control panel instead of as separate machines.
Volcano Flexi Tech Industries notes that corrugated pipes weigh less than rigid pipes, which makes handling, packing and transportation easier. This is why a complete corrugated pipe manufacturing solution matters more than any single machine.
Production Workflow of a Single Wall Corrugated Pipe Plant
According to Volcano Flexi Tech Industries, the plant follows an inline sequence, with a control panel synchronizing each stage.
- Extrusion: The extruder processes plastic and delivers it to the forming section. Material feeding details are not listed by Volcano Flexi Tech Industries.
- Corrugation forming: The corrugator shapes the pipe profile using mould blocks.
- Cooling: A chilled water channel and an air chiller cool the block and pipe.
- Pulling: The puller draws the pipe forward.
- Cutting: The cutter cuts the pipe to the desired coil length.
- Coiling: The coiler winds the finished pipe.
Main Components of a Single Wall Corrugated Pipe Plant
Each listed unit has a defined function.
| Unit | Function | Key features |
|---|---|---|
| Corrugator | Forms the corrugated profile | Gear motor, variable speed drive with emergency stop, centralized lubrication, easy mould block change |
| Cooling system | Cools the block and pipe | Inbuilt channel with brass fittings for chilled water, air chiller for better finish and output |
| Pipe puller | Draws the pipe forward | Geared motor, endless tooth rubber belt, prevents residual deformation and burrs, adjustable for pipe sizes |
| Pipe cutter | Cuts pipe to the desired coil length | Pneumatic cylinder working on panel signals, no manual cutting needed |
| Coiler | Winds the finished pipe | Motorized two spool winder with umbrella design, manual version also offered |
| Control panel | Coordinates all sections | AC drives, temperature controllers, length counter, lubrication controller |
Role of a Single Wall Plastic Corrugator Machine in Pipe Production
The corrugator is where the pipe gets its corrugated structure, so its configuration shapes what the whole line can make. The SWC pipe machine configuration includes the following specifications.
| Specification | Detail |
|---|---|
| Pipe size | 10 mm to 50 mm diameter |
| Corrugator drive | 3 HP, three phase, 415 volt gear motor |
| Line speed | 0.5 m/min to 15 m/min, depending on pipe size and extruder output |
| Lubrication | Centralized system |
| Cooling | Inbuilt channel with chilled water connections |
| Overall dimension | 3000 mm × 600 mm × 1850 mm (L × W × H) |
For other sizes, Volcano Flexi Tech Industries states that it can design and supply a customized Single Wall Plastic Corrugator plant.
Our Other Product
Function of an SWC Extrusion Machine in Manufacturing
An SWC Extrusion Machine is the plastic extrusion equipment at the start of the line. The extrusion stage supplies the material required for the corrugation process.
According to Volcano Flexi Tech Industries, corrugator speed depends on extruder output, so the two must be matched. Extruder specifications are not published, so ask Volcano Flexi Tech Industries for output details.

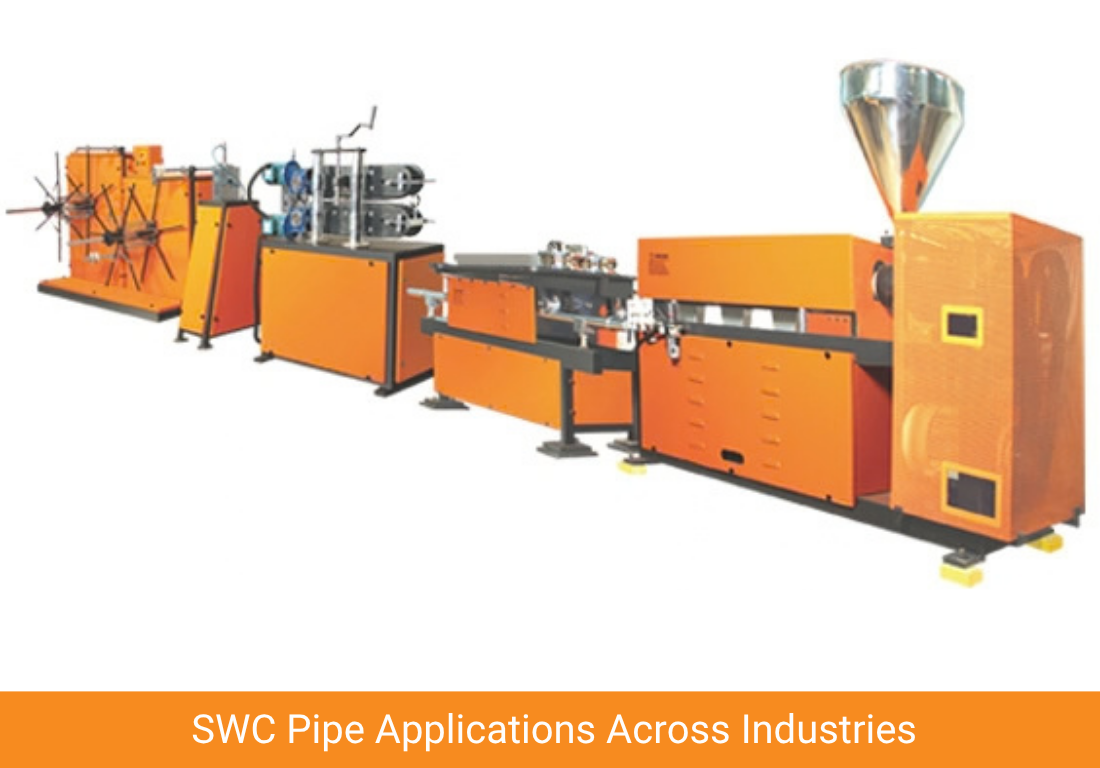

Applications of Pipes Produced from an SWC Pipe Plant
The Volcano Flexi Tech Industries website lists these application areas.
- Electrical insulation and cable protection: buildings, machinery and automotive uses.
- Equipment: washing machines, vacuum cleaners, medical applications, televisions, telephones, computer lines and conveyors.
- Other uses: drain pipe, civil engineering, air conditioner ducts, architectural use, bio gas plant media and drip irrigation.
Factors to Consider Before Selecting a Single Wall Corrugated Pipe Making Machine
| Factor | What to check |
|---|---|
| Pipe size range | Compare your sizes with the standard ranges of OD 10 to 50 mm and OD 50 to 150 mm |
| Application | Match the pipe to its end use, such as cable protection or drainage |
| Production requirements | Ask how the line performs for your product mix, since speed depends on pipe size and extruder output |
| Cooling needs | Confirm a chilled water supply and the air chiller suit your setup |
| Available space | Allow for the corrugator dimensions plus the extruder, puller, cutter and coiler |
| Coiling requirements | Choose a motorized or manual coiler based on output |
| Customization | Ask Volcano Flexi Tech Industries about sizes outside the standard range |
Importance of Evaluating Complete SWC Pipe Production Lines
Buyers tend to look at the whole line because its sections depend on each other.
- Integrated line: A control panel synchronizes the extruder, corrugator, puller, cutter and coiler.
- Easier operation: Mould block change supports operational simplicity, and Volcano Flexi Tech Industries also mentions low routine maintenance cost, less power consumption and quick after sales service.
- Matched sections: Extrusion output and corrugation speed need to suit each other.
- Future customization: An SWC Pipe Making Machine that fits your sizes today can be customized for other sizes later.
Volcano Flexi Tech Industries’ corrugated extrusion pipe line follows this integrated production approach.
About Volcano Flexi Tech Industries
Volcano Flexi Tech Industries, based in Ahmedabad, India, is a manufacturer, exporter and supplier of plastic corrugator pipe machinery. Its product range includes single wall corrugator machines, double wall corrugator machines, a 500 mm ID double wall corrugator machine and plastic extrusion machinery. This range gives buyers a practical reference for comparing SWC pipe manufacturing requirements with other corrugated pipe options.
Choosing the Right Single Wall Corrugated Pipe Plant
Manufacturers evaluating an SWC Pipe Plant should consider pipe requirements, production goals, available space and future customization needs before selecting a suitable configuration. Reviewing the control panel, cooling arrangement and coiling options gives a clearer view of overall fit. Comparing solutions from manufacturers like Volcano Flexi Tech Industries against these requirements supports an informed decision.
